DML1010FDK

SINGLE CHANNEL SMART LOAD SWITCH

DML1010FDK Features

* Low RDS(ON)

* Ensures On-State Losses are Minimized

* 0.8V to VVBIAS-1.5V Input Voltage Range

* 6A Continuous Current

* Low RDS(ON) Internal NFETs 8mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C

* 35µA Low Quiescent Current

* 10µs Turn on Rise Time

* 3.2V to 5.5V Bias

DML1010FDK General Description

The DIODES™ DML1010FDK is a single channel load switch with very low on-resistance in a small package. It contains an N-channel MOSFET for up to VVBIAS-1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal thr.

DML1010FDK Datasheet (1.03 MB)

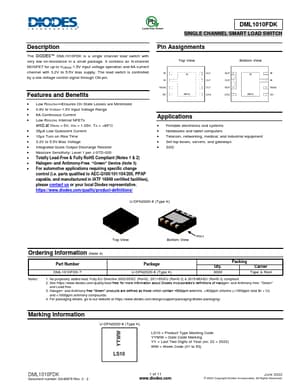

Preview of DML1010FDK PDF

Datasheet Details

Part number:

DML1010FDK

Manufacturer:

DIODES ↗

File Size:

1.03 MB

Description:

Single channel smart load switch.
