DML0312 Datasheet (Vishay Siliconix) - Ceramic Singlelayer Feed-Through Capacitors 400VDC

DML0312, Ceramic Singlelayer Feed-Through Capacitors 400VDC

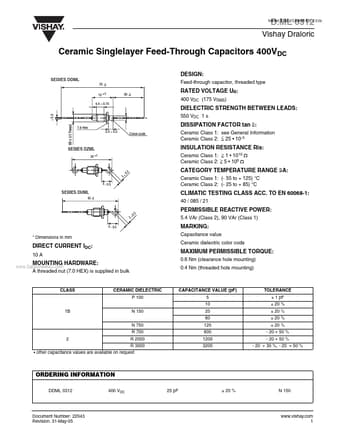

D.ML 0312 Vishay Draloric Ceramic Singlelayer Feed-Through Capacitors 400VDC DESIGN: SERIES DDML 70 -2 12 +1 4.4 ± 0.15 30 -5 Feed-through capacitor, threaded type RATED VOLTAGE UR: 400 VDC (175 VRMS) DIELECTRIC STRENGTH BETWEEN LEADS: 550 VDC 1 s ∅ 0.8 M5 x 0.5 Thread 7.0 Hex DISSIPATION FACTOR tan δ: 2.5 ± 0.2 Color code Ceramic Class 1: see General Information Ceramic Class 2: ≤ 25 10-3 SERIES DZML 24 +1 INSULATION RESISTANCE Ris: Ceramic Class 1: ≥ 1 1010 Ω Cer
