DML1005LDS - SINGLE CHANNEL SMART LOAD SWITCH

Diodes

📥 Download Datasheet

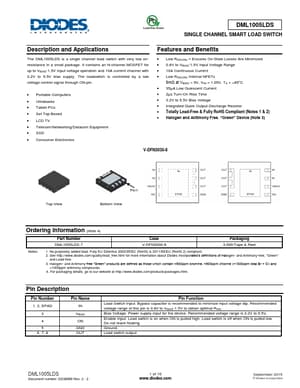

DML1005LDS Datasheet Preview — Preview of DML1005LDS PDF

Datasheet Details

Part number: DML1005LDS
Manufacturer: DIODES ↗
File Size: 1.01 MB
Datasheet: DML1005LDS-Diodes.pdf
Description: SINGLE CHANNEL SMART LOAD SWITCH

DML1005LDS Product details

Description

and Applications The DML1005LDS is a single channel load switch with very low onresistance in a small package.It contains an N-channel MOSFET for up to VBIAS-1.5V input voltage operation and 10A current channel with 3.2V to 5.5V bias supply.The loadswitch is controlled by a low voltage control signal through ON pin. Portable Computers Ultrabooks Tablet PCs Set Top Boxed LCD TV Telecom/Networking/Datacom Equipment SSD Consumer Electronics Feature

Features

Low RDS(ON).
Ensures On-State Losses Are Minimized.
0.8V to VBIAS-1.5V Input Voltage Range.
10A Continuous Current.
Low RDS(ON) Internal NFETs 5mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C.
35µA Low Quiescent Current.
2µs Turn-On Rise Time.
3.2V to 5.5V Bias Voltage.
Integrated Quick Output Discharge Resistor.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) V-DFN3030-8 Top View.
