DML1006LDS

SINGLE CHANNEL SMART LOAD SWITCH

DML1006LDS Features

* Low RDS(ON)

* Ensures On State Losses Are Minimized

* 0.8V to VBIAS-1.5V Input Voltage Range

* 10A Continuous Current

* Low RDS(ON) Internal NFETs 5mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C

* 35µA Low Quiescent Current

* 200µs Turn On Rise Time

* 3.2V to 5.5V Bi

DML1006LDS General Description

and Applications The DML1006LDS is a single channel load switch with very low onresistance in a small package. It contains an N-channel MOSFET for up to VBIAS-1.5V input voltage operation and 10A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control si.

DML1006LDS Datasheet (669.91 KB)

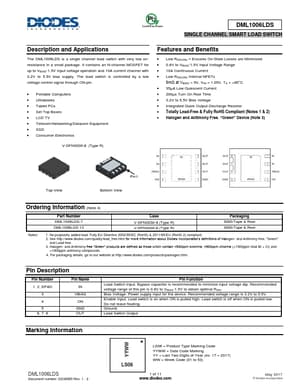

Preview of DML1006LDS PDF

Datasheet Details

Part number:

DML1006LDS

Manufacturer:

DIODES ↗

File Size:

669.91 KB

Description:

Single channel smart load switch.
