* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications This MOSFET is designed

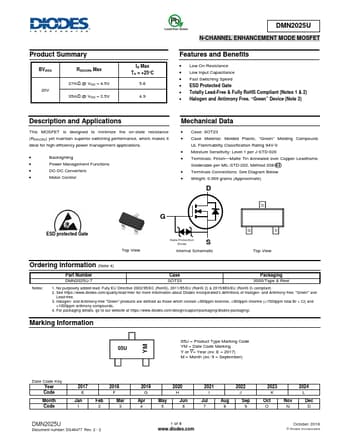

DMN2025U Datasheet (352.33 KB)
DMN2025U
352.33 KB
N-channel mosfet.
Product Summary
BVDSS 20V
RDS(ON) Max 27mΩ @ VGS = 4.5V 35mΩ @ VGS = 2.5V
ID Max TA = +25°C
5.6
4.9
DMN2025U
N-CHANNEL ENHANCEMENT MODE MOSFET
Fea.
