* 0.6mm Profile
* Ideal for Low Profile Applications
* PCB Footprint of 4mm2
* Low Gate Threshold Voltage
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
DMN2025UFDB Datasheet (480.53 KB)
DMN2025UFDB
480.53 KB
Dual 20v n-channel enhancement mode mosfet.

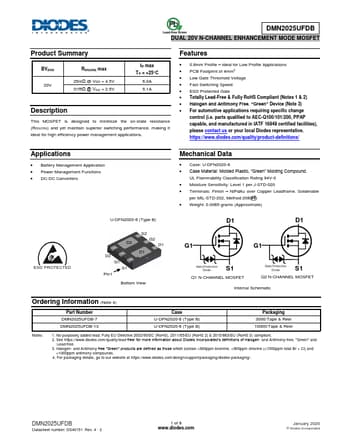

DMN2025UFDB
DUAL 20V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 20V
RDS(ON) max
25mΩ @ VGS = 4.5V 31mΩ @ VGS = 2.5V
ID max TA = +25°C.
