DMN32M7LCA8 Datasheet, Mosfet, DIODES

DMN32M7LCA8 Features

  • Mosfet
  • CSP with Footprint 6mm × 2.5mm
  • Height = 0.18mm (Typical) for Low Profile
  • ESD Protection of Gate
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1

PDF File Details

Part number:

DMN32M7LCA8

Manufacturer:

DIODES ↗

File Size:

435.92kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode mosfet. This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, mak

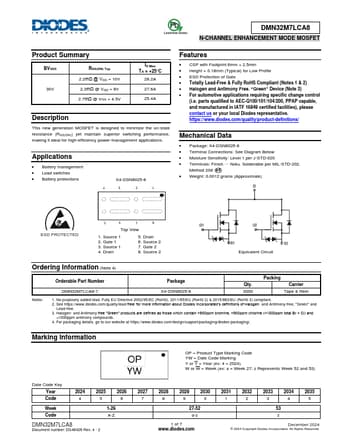

Datasheet Preview: DMN32M7LCA8 📥 Download PDF (435.92kb)
Page 2 of DMN32M7LCA8 Page 3 of DMN32M7LCA8

DMN32M7LCA8 Application

  • Applications Applications
  • Battery management
  • Load switches
  • Battery protections X4-DSN6025-8 Features
  • CSP
