DMP3021SSS Datasheet - DIODES

30V P-CHANNEL MOSFET

DMP3021SSS Features

* Low RDS(ON)

* Ensures On-State Losses Are Minimized

* Small Form Factor Thermally Efficient Package Enables Higher Density End Products

* Occupies just 33% of The Board Area Occupied by SO-8 Enabling Smaller End Product

* ESD Protected Gate

* Totally Lead-Free & Fully R

DMP3021SSS General Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications. * Backlighting * Power Management Functions * DC-DC Converters Mechanical.

DMP3021SSS Datasheet (563.79 KB)

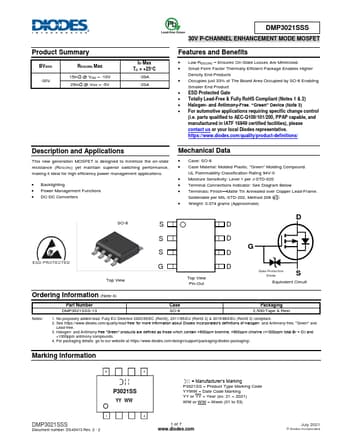

Preview of DMP3021SSS PDF

Datasheet Details

Part number:

DMP3021SSS

Manufacturer:

DIODES ↗

File Size:

563.79 KB

Description:

30v p-channel mosfet.
ADVANCED INFORMATION Product Summary BVDSS -30V RDS(ON) Max 15mΩ @ VGS = -10V 25mΩ @ VGS = -5V ID Max TC = +25°C -39A -20A DMP3021SSS 30V P-CHANN.
