* 100% Unclamped Inductive Switch (UIS) Test In Production
* Low On-Resistance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability
* PPAP

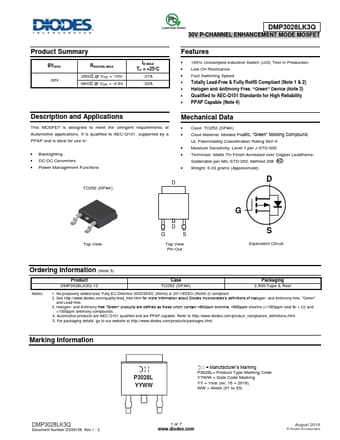

DMP3028LK3Q Datasheet (381.38 KB)
DMP3028LK3Q
381.38 KB
P-channel mosfet.
DMP3028LK3Q
30V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS -30V
RDS(ON) MAX
25mΩ @ VGS = -10V 38mΩ @ VGS = -4.5V
ID MAX TC = +25°C
-2.
