DSS4310FJAWQ 10V NPN LOW SATURATION TRANSISTOR

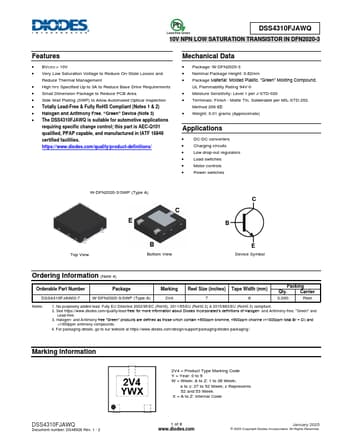

📥 Download Datasheet Datasheet Preview Page 1

Description

DSS4310FJAWQ 10V NPN LOW SATURATION TRANSISTOR IN DFN2020-3 .

📥 Download Datasheet

Preview of DSS4310FJAWQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DSS4310FJAWQ
Manufacturer
DIODES ↗
File Size
462.22 KB
Datasheet
DSS4310FJAWQ-DIODES.pdf
Description
10V NPN LOW SATURATION TRANSISTOR

Features

* BVCEO > 10V
* Very Low Saturation Voltage to Reduce On-State Losses and Reduce Thermal Management
* High hFE Specified Up to 3A to Reduce Base Drive Requirements
* Small Dimension Package to Reduce PCB Area
* Side Wall Plating (SWP) to Allow Automated Optica

Applications

* requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www. diodes. com/quality/product-definitions/ Mechanical Data
* Package: W-DFN2020-3
* Nominal Package Height: 0.62mm
* Package Materi

DSS4310FJAWQ Distributors
