DSS40-0008D Power Schottky Rectifier

Power Schottky Rectifier VRSM V 8 VRRM V 8 Type DSS 40-0008D DSS 40-0008D IFAV = 40 A VRRM = 8 V VF = 0.23 V A C TO-247 AD A C nc C (TAB) A = Anode, C = Cathode , TAB = Cathode nc = not connected Symbol IFRMS IFAV IFAV IFSM EAS IAR (dv/dt)cr TVJ TVJM Tstg Ptot Md Weight Conditions Maximum Ratings TC = 135°C; rectangular, d = 0.5 TC = 135°C; rectangular, d = 0.5; per device TVJ = 45°C; tp = 10 ms (50 Hz), sine IAS = 40 A; L = 100 µH; TVJ = 25°C; non repetitive VA = 1.5 VRRM .

DSS40-0008D Features

* International standard package

* Very low VF

* Extremely low switching losses

* Low IRM-values

* Epoxy meets UL 94V-0 Applications

* Rectifiers in switch mode power supplies (SMPS)

* Free wheeling diode in low voltage converters Advantages

DSS40-0008D-IXYS.pdf

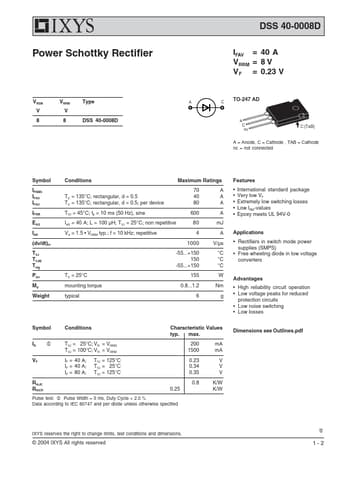

DSS40-0008D Datasheet Preview — Preview of DSS40-0008D PDF

Datasheet Details

Part number:

DSS40-0008D

Manufacturer:

IXYS

File Size:

40.12 KB

Description:

Power schottky rectifier.
