DSS4160FDB Datasheet, Transistor, Diodes

DSS4160FDB Features

  • Transistor
  • BVCEO > 60V
  • IC = 1A High Continuous Collector Current
  • RCE(SAT) = 180mΩ for a Low Equivalent On-Resistance
  • Low Saturation Voltage VCE(SAT) < 220mV

PDF File Details

Part number:

DSS4160FDB

Manufacturer:

DIODES ↗

File Size:

472.25kb

Download:

📄 Datasheet

Description:

60v dual npn low vce(sat) transistor.

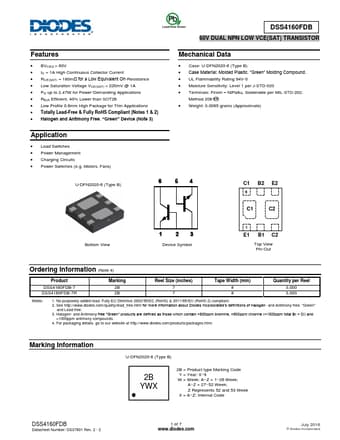

Datasheet Preview: DSS4160FDB 📥 Download PDF (472.25kb)
Page 2 of DSS4160FDB Page 3 of DSS4160FDB

DSS4160FDB Application

  • Applications
  • RθJA Efficient, 40% Lower than SOT26
  • Low Profile 0.6mm High Package for Thin Applications
  • Totally Lead-Fr
