FR1M, FR1A GLASS PASSIVATED FAST RECOVERY RECTIFIER

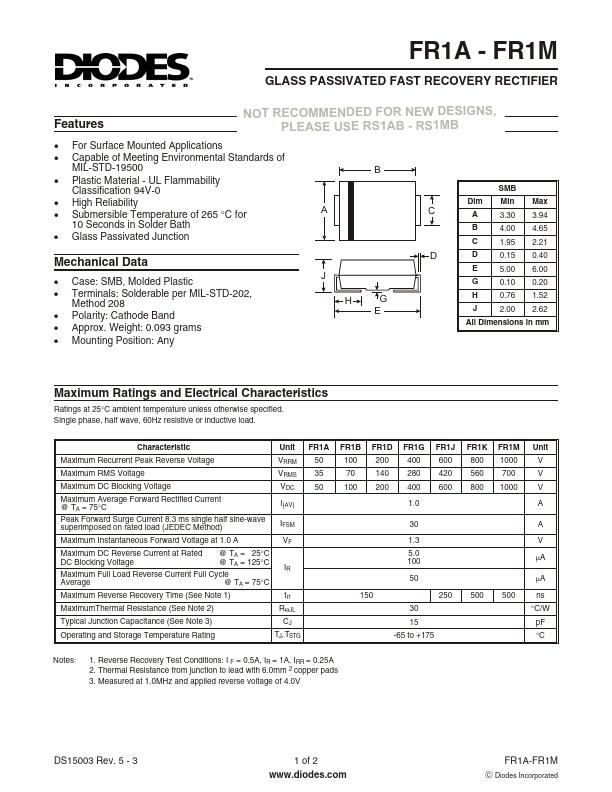

📥 Download Datasheet Datasheet Preview Page 1

Description

FR1A - FR1M GLASS PASSIVATED FAST RECOVERY RECTIFIER .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR1M, FR1A. Please refer to the document for exact specifications by model.

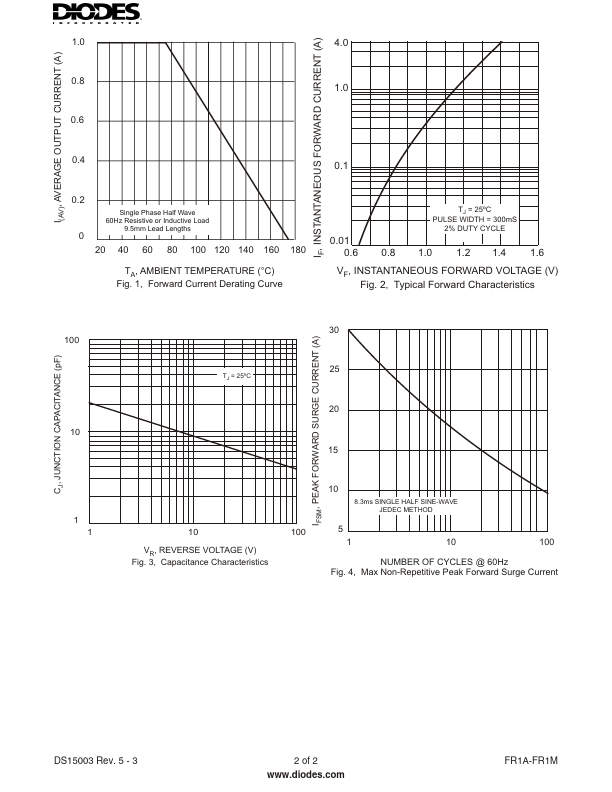

datasheet Preview Page 2

Datasheet Specifications

Part number
FR1M, FR1A
Manufacturer
DIODES ↗
File Size
45.49 KB
Datasheet
FR1A-DIODES.pdf
Description
GLASS PASSIVATED FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: FR1M, FR1A.
Please refer to the document for exact specifications by model.

Features

* NOT RECOMMENDED FOR NEW DESIGNS, PLEASE USE RS1AB - RS1MB

Applications

* Capable of Meeting Environmental Standards of MIL-STD-19500
* Plastic Material - UL Flammability Classification 94V-0
* High Reliability
* Submersible Temperature of 265 °C for 10 Seconds in Solder Bath
* Glass Passivated Junction Mechanical Data
* Case: SMB, Molded Plastic
