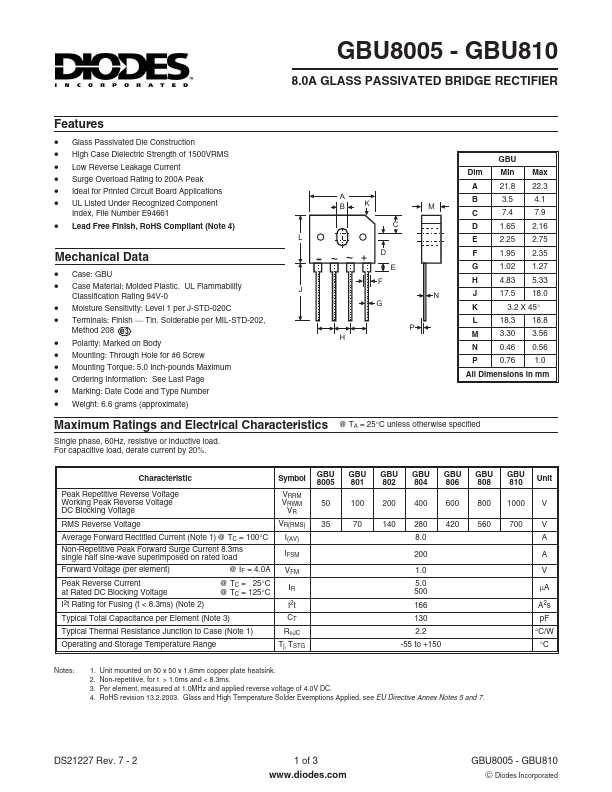

GBU804, GBU8005 8.0A GLASS PASSIVATED BRIDGE RECTIFIER

DIODES

Description

GBU8005 - GBU810 8.0A GLASS PASSIVATED BRIDGE RECTIFIER .

📥 Download Datasheet

GBU804 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBU804, GBU8005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBU804, GBU8005
Manufacturer: DIODES ↗
File Size: 66.39 KB
Datasheet: GBU8005-DIODES.pdf
Description: 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: GBU804, GBU8005.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* High Case Dielectric Strength of 1500VRMS
* Low Reverse Leakage Current
* Surge Overload Rating to 200A Peak

Applications

* UL Listed Under Recognized Component Index, File Number E94661
* Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data
* Case: GBU
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020C
* Terminals: Fi
