LSC10120FW - SILICON CARBIDE SCHOTTKY DIODE

Datasheet Summary

Features

  • Positive temperature coefficient for safe operation and Easy of paralleling.
  • Essentially no reverse or forward recovery.
  • Extremely fast switching not dependent on temperature.
  • Qualification is according to AEC-Q101 Rev_D.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).

📥 Download Datasheet

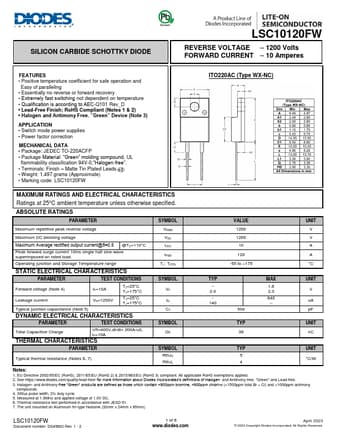

Datasheet preview – LSC10120FW

Datasheet Details

Part number LSC10120FW
Manufacturer DIODES
File Size 458.95 KB
Description SILICON CARBIDE SCHOTTKY DIODE
Datasheet download datasheet LSC10120FW Datasheet
Additional preview pages of the LSC10120FW datasheet.

📁 Similar Datasheet

  • LSC11N60 - N-channel MOSFET (Lonten)
  • LSC11N65 - N-channel MOSFET (Lonten)
  • LSC11N65E - N-channel 650V Power MOSFET (Lonten)
  • LSC1300 - Miniature Laser (BT&D)
  • LSC - Low Power Surface Mount Crystal Oscillator (STATEK CORPORATION)
  • LSC - SCREW TERMINAL ALUMINUM ELECTROLYTIC CAPACITORS (Rubycon)
  • LSC04N65 - N-channel MOSFET (Lonten)
  • LSC04N70A - N-channel Power MOSFET (LONTEN)
  • LSC07N70 - N-channel MOSFET (Lonten)
  • LSC20N60 - N-channel MOSFET (Lonten)
Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text
Green SILICON CARBIDE SCHOTTKY DIODE LSC10120FW REVERSE VOLTAGE – 1200 Volts FORWARD CURRENT – 10 Amperes FEATURES • Positive temperature coefficient for safe operation and Easy of paralleling • Essentially no reverse or forward recovery • Extremely fast switching not dependent on temperature • Qualification is according to AEC-Q101 Rev_D • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) APPLICATION • Switch mode power supplies • Power factor correction MECHANICAL DATA • Package: JEDEC TO-220ACFP • Package Material: “Green” molding compound, UL flammability classification 94V-0,“Halogen-free”. • Terminals: Finish – Matte Tin Plated Leads • Weight: 1.
