LSC04N65 - N-channel MOSFET

Datasheet Summary

Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology.

The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.

Features

  • Ultra low RDS(on).
  • Ultra low gate charge (typ. Qg = 13nC).
  • 100% UIS tested.
  • RoHS compliant TO-251 TO-252 TO-220 D TO-220F.

📥 Download Datasheet

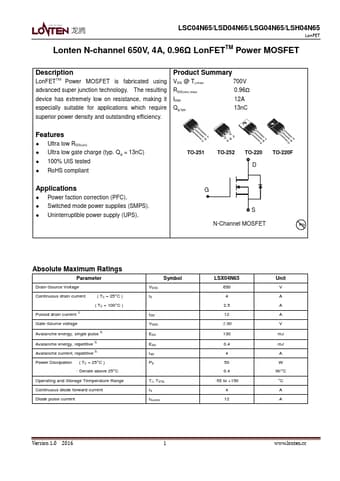

Datasheet preview – LSC04N65

Datasheet Details

Part number LSC04N65
Manufacturer Lonten
File Size 853.30 KB
Description N-channel MOSFET
Datasheet download datasheet LSC04N65 Datasheet
Additional preview pages of the LSC04N65 datasheet.

📁 Similar Datasheet

  • LSC06065TDW - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC06065W - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC - Low Power Surface Mount Crystal Oscillator (STATEK CORPORATION)
  • LSC - SCREW TERMINAL ALUMINUM ELECTROLYTIC CAPACITORS (Rubycon)
  • LSC10120FW - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC1300 - Miniature Laser (BT&D)
  • LSC2110 - 1 mW 14 Pin DIL Cooled Laser (Agilent(Hewlett-Packard))
  • LSC2210 - 14 PIN DFB Laser (HP)
  • LSC2500 - 2.488 Gb/s DFB Laser (HP)
  • LSC3-12VDC-T - TELECOM RELAY (LEONE)
Other Datasheets by Lonten

Full PDF Text Transcription

Click to expand full text
LSC04N65/LSD04N65/LSG04N65/LSH04N65 LonFET Lonten N-channel 650V, 4A, 0.96Ω LonFETTM Power MOSFET Description LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max 700V RDS(on),max 0.96Ω IDM 12A Qg,typ 13nC Features  Ultra low RDS(on)  Ultra low gate charge (typ. Qg = 13nC)  100% UIS tested  RoHS compliant TO-251 TO-252 TO-220 D TO-220F Applications  Power faction correction (PFC).  Switched mode power supplies (SMPS).  Uninterruptible power supply (UPS).
