LSC20N65 - N-channel MOSFET

Datasheet Summary

Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology.

The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.

Features

  • Ultra low Rdson.
  • Ultra low gate charge (typ. Qg = 68nC).
  • 100% UIS tested.
  • RoHS compliant D G S N-Channel MOSFET Pb Absolute Maximum Ratings Parameter Drain-Source Voltage Continuous drain current Pulsed drain current 1) ( TC = 25°C ) ( TC = 100°C ) Gate-Source voltage Avalanche energy, single pulse 2) Avalanche energy, repetitive 1) Avalanche current, repetitive 1) Power Dissipation ( TC = 25°C ) - Derate above 25°C Operating and Storage Temperature Range Conti.

📥 Download Datasheet

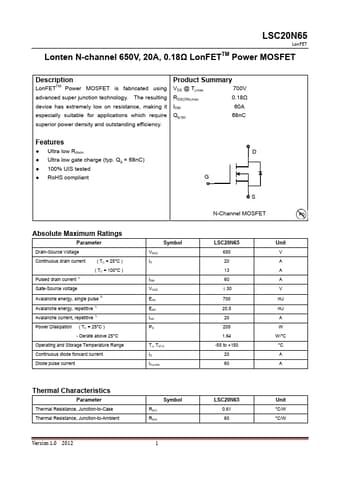

Datasheet preview – LSC20N65

Datasheet Details

Part number LSC20N65
Manufacturer Lonten
File Size 497.50 KB
Description N-channel MOSFET
Datasheet download datasheet LSC20N65 Datasheet
Additional preview pages of the LSC20N65 datasheet.

📁 Similar Datasheet

  • LSC2110 - 1 mW 14 Pin DIL Cooled Laser (Agilent(Hewlett-Packard))
  • LSC2210 - 14 PIN DFB Laser (HP)
  • LSC2500 - 2.488 Gb/s DFB Laser (HP)
  • LSC - Low Power Surface Mount Crystal Oscillator (STATEK CORPORATION)
  • LSC - SCREW TERMINAL ALUMINUM ELECTROLYTIC CAPACITORS (Rubycon)
  • LSC06065TDW - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC06065W - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC10120FW - SILICON CARBIDE SCHOTTKY DIODE (DIODES)
  • LSC1300 - Miniature Laser (BT&D)
  • LSC3-12VDC-T - TELECOM RELAY (LEONE)
Other Datasheets by Lonten

Full PDF Text Transcription

Click to expand full text
LSC20N65 LonFET Lonten N-channel 650V, 20A, 0.18Ω LonFETTM Power MOSFET Description LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max 700V RDS(ON),max 0.18Ω IDM 60A Qg,typ 68nC Features  Ultra low Rdson  Ultra low gate charge (typ.
