PI5A3157 Datasheet - DIODES

PI5A3157 Low Voltage Dual SPDT Analog Switch 2:1 Mux/DeMux Bus Switch

The DIODES PI5A3157 is a high-bandwidth, fast single-pole double-throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage range, 1.65V to 5.5V, the PI5A3157 has a maximum ON resistance of 12Ω at 1.65V, 9Ω at 2.3V .

PI5A3157 Features

* y CMOS Technology for Bus and Analog Applications y Low On-Resistance: 8Ω at 3.0V y Wide VDD Range: 1.65V to 5.5V y Rail-to-Rail Signal Range y Control Input Overvoltage Tolerance: 5.5V min. y Fast Transition Speed: 5.2ns max. at 5V y High Off Isolation: 57dB at 10MHz y 54dB (10MHz) Crosstalk Reject

PI5A3157 Datasheet (823.32 KB)

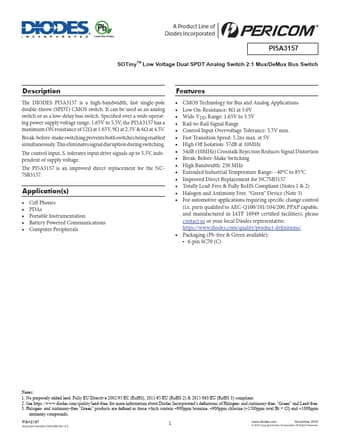

PI5A3157 Datasheet Preview — Preview of PI5A3157 PDF

Datasheet Details

Part number:

PI5A3157

Manufacturer:

DIODES ↗

File Size:

823.32 KB

Description:

Low voltage dual spdt analog switch 2:1 mux/demux bus switch.
