PI5A3158B - Low Voltage Dual SPDT Analog Switch 2:1 Mux/Demux Bus Switch

Product Overview

📥 Download Datasheet

Datasheet preview – PI5A3158B

Datasheet Details

Part number PI5A3158B
Manufacturer DIODES
File Size 1.39 MB
Description Low Voltage Dual SPDT Analog Switch 2:1 Mux/Demux Bus Switch
Datasheet download datasheet PI5A3158B Datasheet
Additional preview pages of the PI5A3158B datasheet.

Product details

Description

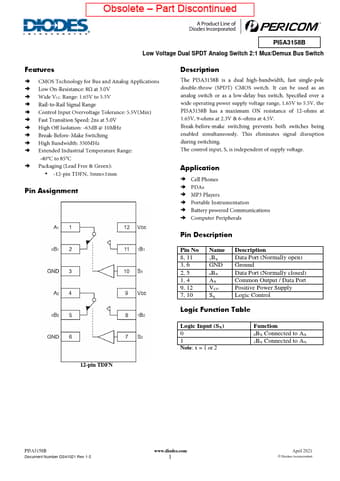

Application       Pin Description Pin No 8, 11 3, 6 2, 5 1, 4 9, 12 7, 10 Name 1BX GND 0BX AX VCC SX Description Data Port (Normally open) Ground Data Port (Normally closed) Common Output / Data Port Positive Power Supply Logic Control Logic Function Table Logic Input (SX) 0 1 Note: x = 1 or 2 Function 0BX Connected to AX 1BX Connected to AX PI5A3158B Document Number DS41021 Rev 1-2 www.diodes.com 1 April 2021 © Diodes Incorporated PI5A3158B Maximum Ratings Storage Temperatur
