PI5A3158

SOTINYTM Low Voltage Dual SPDT Analog Switch 2:1 Mux/DeMux Bus Switch

PI5A3158 Features

* CMOS Technology for Bus and Analog Applications Low On-Resistance: 8Ω at 3.0V Wide VCC Range: 1.65V to 5.5V Rail-to-Rail Signal Range Control Input Overvoltage Tolerance: 5.5V min.

PI5A3158 General Description

The PI5A3158 is a dual high-bandwidth, fast single-pole doublethrow (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage range, 1.65V to 5.5V, the PI5A3158 has a maximum On-Resistance of 12Ω at 1.65V, 9Ω at 2.3V & 6.

PI5A3158 Datasheet (475.66 KB)

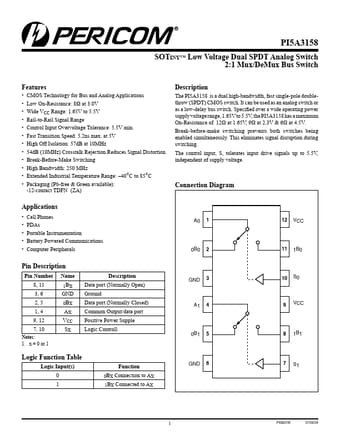

Preview of PI5A3158 PDF

Datasheet Details

Part number:

PI5A3158

Manufacturer:

Pericom Semiconductor Corporation

File Size:

475.66 KB

Description:

Sotinytm low voltage dual spdt analog switch 2:1 mux/demux bus switch.
