PI5A3159 Datasheet, Switch, Pericom Semiconductor Corporation

PI5A3159 Features

• Switch
• CMOS Technology for Bus and Analog Applications
• Low On-Resistance: 2Ω at 3.0V
• Wide VCC Range: +1.8V to +5.5V
• Low Power Consumption : 5µW

PDF File Details

Part number:

PI5A3159

Manufacturer:

Pericom Semiconductor Corporation

File Size:

604.23kb

Download:

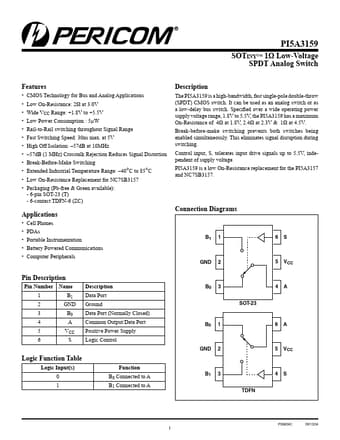

📄 Datasheet

Description:

Sotinytm 1 low-voltage spdt analog switch. The PI5A3159 is a high-bandwidth, fast single-pole double-throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-de

PI5A3159 Application

• Applications
• Low On-Resistance: 2Ω at 3.0V
• Wide VCC Range: +1.8V to +5.5V
• Low Power Consumption : 5µW
• Rail-t
