PI6CG332Q - 2-Output PCIe Gen 6 Clock Generator

PI6CG332Q Description

Pb Lead-free Green A Product Line of Diodes Incorporated PI6CG332Q 2-Output PCIe Gen 6 Clock Generator For Automotive Applications .
Features The DIODES PI6CG332Q is a 2-output very low power PCIe® Gen 1/Gen 2/Gen 3/Gen 4/Gen 5/Gen 6 clock generator.

PI6CG332Q Features

* The DIODES PI6CG332Q is a 2-output very low power PCIe® Gen 1/Gen 2/Gen 3/Gen 4/Gen 5/Gen 6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 8 external resistor

📥 Download Datasheet

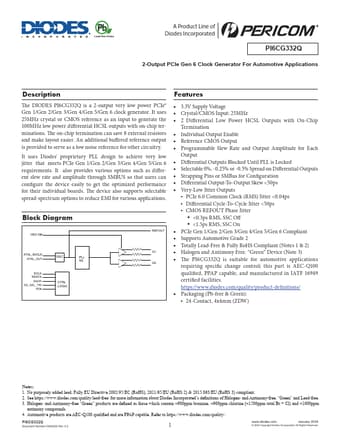

Preview of PI6CG332Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PI6CG332Q
Manufacturer
DIODES ↗
File Size
1.28 MB
Datasheet
PI6CG332Q-DIODES.pdf
Description
2-Output PCIe Gen 6 Clock Generator
