PI6CG33202C - 3.3V Very Low Power 2-Output PCIe Clock Generator

Diodes

PI6CG33202C Description

Pb Lead-free Green A Product Line of Diodes Incorporated PI6CG33202C 3.3V Very Low Power 2-Output PCIe Clock Generator With On-chip Termination De.
Features The DIODES PI6CG33202C is a 2-output very low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator.

PI6CG33202C Features

* The DIODES PI6CG33202C is a 2-output very low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 8 external resistors and

PI6CG33202C Applications

* Block Diagram OE[1:0]# REFOUT Q1 XTAL_IN/CLK XTAL_OUT OSC PLL SS Q0 SCLK SDATA SADR SS_SEL_TRI PD# CTRL LOGIC y 3.3V Supply Voltage y Crystal/CMOS Input: 25 MHz y 2 Differential Low Power HCSL Outputs with On-Chip Termination y Default ZOUT = 85Ω y Individual Output Enable y Reference CMO

📥 Download Datasheet

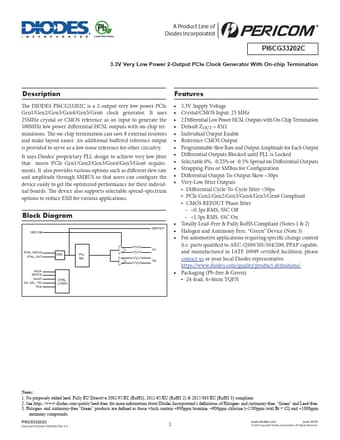

PI6CG33202C Datasheet Preview — Preview of PI6CG33202C PDF

Datasheet Details

Part number: PI6CG33202C
Manufacturer: DIODES ↗
File Size: 1.29 MB
Datasheet: PI6CG33202C-Diodes.pdf
Description: 3.3V Very Low Power 2-Output PCIe Clock Generator
