PI6CG33201C - 3.3V Very Low Power 2-Output PCIe Clock Generator

Diodes

PI6CG33201C Description

Pb Lead-free Green A Product Line of Diodes Incorporated PI6CG33201C 3.3V Very Low Power 2-Output PCIe Clock Generator With On-chip Termination De.
Features The DIODES PI6CG33201C is a 2-output very low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator.

PI6CG33201C Features

* The DIODES PI6CG33201C is a 2-output very low power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 8 external resistors and

PI6CG33201C Applications

* Block Diagram OE[1:0]# REFOUT Q1 XTAL_IN/CLK XTAL_OUT OSC PLL SS Q0 SCLK SDATA SADR SS_SEL_TRI PD# CTRL LOGIC y 3.3V Supply Voltage y Crystal/CMOS input: 25 MHz y 2DifferentiallowpowerHCSLoutputswithon-chiptermination y Default ZOUT = 100Ω y Individual output enable y Reference CMOS outpu

📥 Download Datasheet

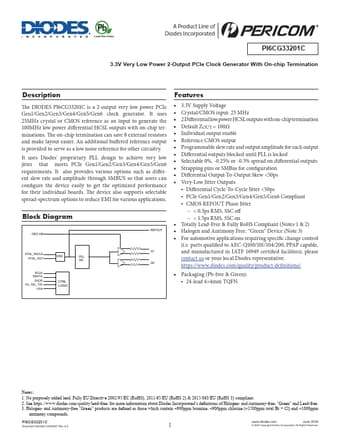

PI6CG33201C Datasheet Preview — Preview of PI6CG33201C PDF
