PI6CG33401C Description

Pb Lead-free Green A Product Line of Diodes Incorporated PI6CG33401C 3.3V Very-Low-Power 4-Output PCIe Clock Generator With On-Chip Termination De.
Features The DIODES PI6CG33401C is a 4-output very-low-power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator.

PI6CG33401C Features

* The DIODES PI6CG33401C is a 4-output very-low-power PCIe Gen1/Gen2/Gen3/Gen4/Gen5/Gen6 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low-power differential HCSL outputs with on-chip terminations. The on-chip termination can save 16 external resistors an

PI6CG33401C Applications

* Block Diagram OE[3:0]# REFOUT Q3 XTAL_IN/CLK XTAL_OUT OSC PLL SS Q2 SCLK Q1 SDATA SADR CTRL SS_SEL_TRI LOGIC Q0 PD# y 3.3V Supply Voltage y Crystal/CMOS Input: 25MHz y Four Differential Low Power HCSL Outputs with On-Chip Termination y Default ZOUT = 100Ω y Individual Output Enable

📥 Download Datasheet

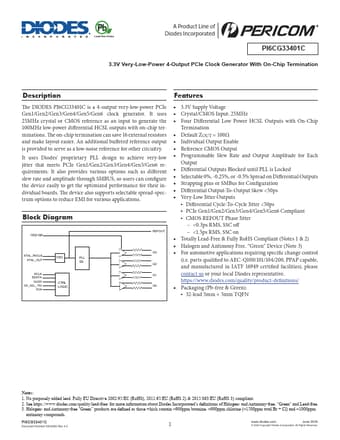

PI6CG33401C Datasheet Preview — Preview of PI6CG33401C PDF
