ESD3Z5.0A Datasheet - DIOS

ESD3Z5.0A 1-Line Unidirectional ESD Protection Diode

These surge protection diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers,business machines, communication systems, medical equipment and other applications. These de.

ESD3Z5.0A Features

* Unidirectional ESD protection of one line

* Reverse stand-off voltage: 5.0V Max

* Low leakage current: nA Level

* Response time is typically < 1 ns

* Low clamping voltage: VC < 15 V @ IPP = 28 A

* ESD Protection: 30kV(air)/ 30kV(contact) ( IEC61000-4

ESD3Z5.0A Datasheet (613.47 KB)

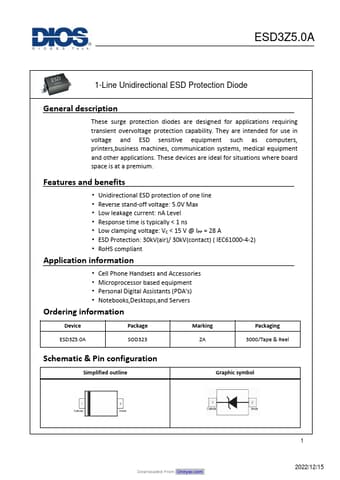

Preview of ESD3Z5.0A PDF
ESD3Z5.0A Datasheet Preview Page 2 ESD3Z5.0A Datasheet Preview Page 3

Datasheet Details

Part number:

ESD3Z5.0A

Manufacturer:

DIOS

File Size:

613.47 KB

Description:

1-line unidirectional esd protection diode.
