ESD3Z5.0D Datasheet - Rectron

Ultra Low Capacitance ESD Protection Diode

ESD3Z5.0D Features

* of low capacitance, ultra-small size and high ESD robustness make ESD3Z5.0D ideal for high-speed data port and high-frequency line (e.g., USB 2.0 & antenna line) applications, such as cellular phones and HD visual devices. ORDERING INFORMATION — Device: ESD3Z5.0D —Package: SOD-323 —Marking: 5L —Mate

ESD3Z5.0D General Description

ESD3Z5.0D is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.4pF, ESD3Z5.0D is designed to protect parasitic-sensitive systems against over-voltage and over-current transie.

ESD3Z5.0D Datasheet (295.15 KB)

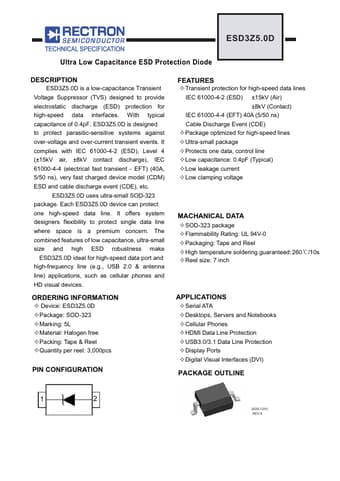

Preview of ESD3Z5.0D PDF

Datasheet Details

Part number:

ESD3Z5.0D

Manufacturer:

Rectron

File Size:

295.15 KB

Description:

Ultra low capacitance esd protection diode.
