ESD3Z5.0C-Q1, ESD3Z3.3C-Q1, Surface Mount Bi-Directional TVS

ESD3ZxxC-Q1 SERIES Surface Mount Bi-Directional TVS For ESD Protection Diode - 3.3V - 36 V .

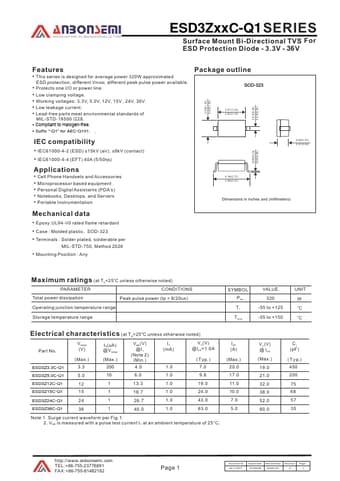

datasheet Preview Page 1 from Datasheet4u.com

ESD3Z3.3C-Q1-ANBON.pdf

ESD3Z5.0C-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ESD3Z5.0C-Q1, ESD3Z3.3C-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ESD3Z5.0C-Q1, ESD3Z3.3C-Q1

Manufacturer:

ANBON

File Size:

761.16 KB

Description:

Surface Mount Bi-Directional TVS

Note:

This datasheet PDF includes multiple part numbers: ESD3Z5.0C-Q1, ESD3Z3.3C-Q1.
Please refer to the document for exact specifications by model.

Features

* This series is designed for average power 320W approximated ESD protection, different VRWM, different peak pulse power available.
* Protects one I/O or power line.
* Low clamping voltage.
* Working voltages: 3.3V, 5.0V, 12V, 15V , 24V, 36V.
* Low leakage cur

Applications

* Cell Phone Handsets and Accessories
* Microprocessor based equipment
* Personal Digital Assistants (PDA’s)
* Notebooks, Desktops, and Servers
* Portable Instrumentation 0.108 (2.75 ) 0.09 6 (2.45 ) Dimensions in inches and (millimeters) Mechanical data
