DIM1200DDM17-PT500 Dual Switch IGBT

DYNEX

DIM1200DDM17-PT500 Description

11.5 ±0.2 14 ±0.2 Replaces DS6282-4 TRENCH Gen5 TMOS Preliminary Information DIM1200DDM17-PT500 Dual Switch IGBT Module DS6282-5 May 2021 (LN40943).

DIM1200DDM17-PT500 Features

* 1
* 8 ±T0r. e2nch Gate IGBT
* 10µs4S4h±o0rt.2Circuit Withstand
* High The5rm7a±l 0C. y2cling Capability
* Soft Punch Through Silicon
* Isolated AlSiC Base with AlN Substrates
* 55Le.2ad±F0r. e3e construction 1
* 1.8L5ow±0V. C2E(sat) Device
* Hi

DIM1200DDM17-PT500 Applications

* High Reliability Inverters
* Motor Controllers
* Traction Drives
* Active Front End Rectifiers The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and cu

📥 Download Datasheet

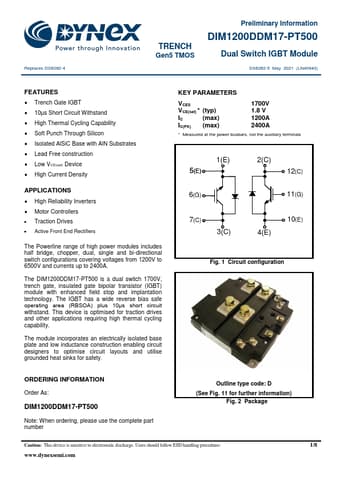

DIM1200DDM17-PT500 Datasheet Preview — Preview of DIM1200DDM17-PT500 PDF

Datasheet Details

Part number: DIM1200DDM17-PT500
Manufacturer: DYNEX
File Size: 343.67 KB
Datasheet: DIM1200DDM17-PT500-DYNEX.pdf
Description: Dual Switch IGBT
