DIM1200ESM33-F000

IGBT

DYNEX

DIM1200ESM33-F000 Features

* 10µs Short Circuit Withstand

* High Thermal Cycling Capability

* Soft Punch Through Silicon

* Isolated AlSiC Base With AlN Substrates

* Lead Free Construction KEY PARAMETERS VCES VCE(sat)

* (typ) IC (max) IC(PK) (max) 3300V 2.8V 1200A 2400A

* Measured at the aux

DIM1200ESM33-F000 Datasheet (401.07 KB)

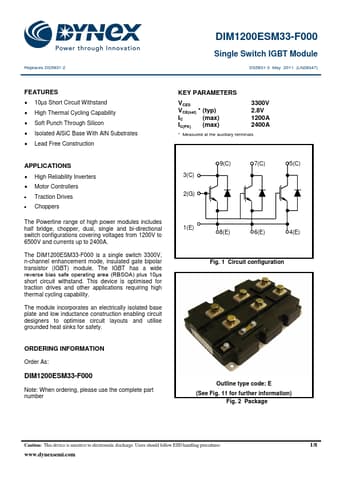

DIM1200ESM33-F000 Datasheet Preview — Preview of DIM1200ESM33-F000 PDF

Datasheet Details

Part number:

DIM1200ESM33-F000

Manufacturer:

DYNEX

File Size:

401.07 KB

Description:

Igbt.
