DIM1200FSM17-A000 Datasheet - Dynex

DIM1200FSM17-A000, Single Switch IGBT Module

DIM1200FSM17-A000 DIM1200FSM17-A000 Single Switch IGBT Module Replaces May 2001, version DS5456-1.1 DS5456-2.0 March 2002 .

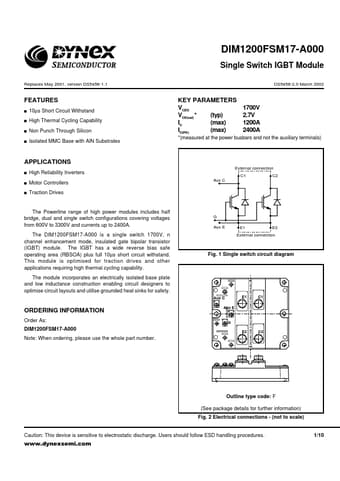

 datasheet Preview Page 1 from Datasheet4u.com

DIM1200FSM17-A000_DynexSemiconductor.pdf

Preview of DIM1200FSM17-A000 PDF

Datasheet Details

Part number:

DIM1200FSM17-A000

Manufacturer:

Dynex

File Size:

154.00 KB

Description:

Single Switch IGBT Module

Features

* s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY PARAMETERS VCES (typ) VCE(sat)
* (max) IC (max) IC(PK) 1700V 2.7V 1200A 2400A
* (measured at the power busbars and not the auxiliary terminals) APPLICA

Applications

* External connection s s s High Reliability Inverters Motor Controllers Traction Drives Aux C C1 C2 The Powerline range of high power modules includes half bridge, dual and single switch configurations covering voltages from 600V to 3300V and currents up to 2400A. The DIM1200FSM17-A000 is a singl
