DS21610

3.3V/5V Clock Rate Adapter

Dallas Semiconducotr

DS21610 Features

* Direct Replacement for LXP610SE Converts E-Carrier Clock Rates to T-Carrier Clock Rates Converts T-Carrier Clock Rates to E-Carrier Clock Rates 3.3V or 5V Supply Low Jitter Output Multiple Output Clocks Synchronized to Input Clock 8kHz Frequency-Locked

DS21610 General Description

The DS21610 is a multirate, low-jitter clock adapter that converts E-carrier and T-carrier clocks to multiple PDH carrier clock rates. Two clock outputs are available that are frequency-locked to the input clock. The clock outputs along with an 8kHz framesync output can be phase-aligned to a frame-s.

DS21610 Datasheet (604.57 KB)

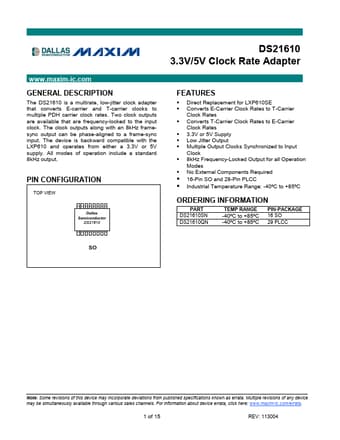

DS21610 Datasheet Preview — Preview of DS21610 PDF

Datasheet Details

Part number:

DS21610

Manufacturer:

Dallas Semiconducotr

File Size:

604.57 KB

Description:

3.3v/5v clock rate adapter.
