DS21600

(DS21600 - DS21604) 3.3V/5V Clock Rate Adapter

DS21600 Features

* Direct Drop-In Replacement for LXP600ASE, LXP602SE, and LXP604SE Converts E-Carrier Clock Rates to T-Carrier Clock Rates Converts T-Carrier Clock Rates to E-Carrier Clock Rates 3.3V or 5V Supply Low Jitter Output Multiple Output Clocks Sync

DS21600 General Description

The DS21600/DS21602/DS21604 are multiple-rate clock adapters that convert between E-carrier and Tcarrier clocks rates. A T1 or E1 clock output, CLKOUT1, is available, along with a higher multiple rate clock output, CLKOUT2. CLKOUT1 and CLKOUT2 are frequency locked to the clock input CLKIN. The clock.

DS21600 Datasheet (429.53 KB)

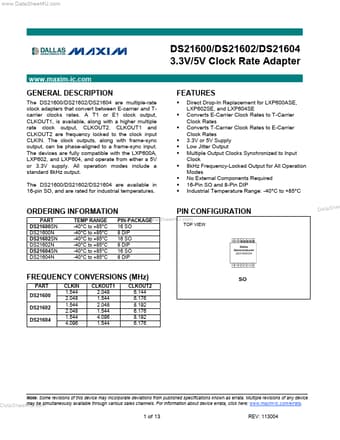

Preview of DS21600 PDF

Datasheet Details

Part number:

DS21600

Manufacturer:

Maxim Integrated ↗ Products

File Size:

429.53 KB

Description:

(ds21600 - ds21604) 3.3v/5v clock rate adapter.
