DS21602, DS21600 Datasheet - Maxim Integrated Products

DS21602 (DS21600 - DS21604) 3.3V/5V Clock Rate Adapter

The DS21600/DS21602/DS21604 are multiple-rate clock adapters that convert between E-carrier and Tcarrier clocks rates. A T1 or E1 clock output, CLKOUT1, is available, along with a higher multiple rate clock output, CLKOUT2. CLKOUT1 and CLKOUT2 are frequency locked to the clock input CLKIN. The clock.

DS21602 Features

* Direct Drop-In Replacement for LXP600ASE, LXP602SE, and LXP604SE Converts E-Carrier Clock Rates to T-Carrier Clock Rates Converts T-Carrier Clock Rates to E-Carrier Clock Rates 3.3V or 5V Supply Low Jitter Output Multiple Output Clocks Sync

DS21600_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: DS21602, DS21600. Please refer to the document for exact specifications by model.

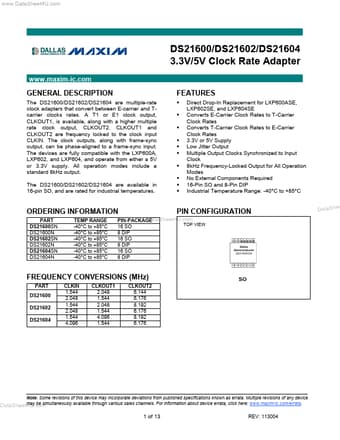

DS21602 Datasheet Preview Page 2 DS21602 Datasheet Preview Page 3

Datasheet Details

Part number:

DS21602, DS21600

Manufacturer:

Maxim Integrated ↗ Products

File Size:

429.53 KB

Description:

(ds21600 - ds21604) 3.3v/5v clock rate adapter.

Note:

This datasheet PDF includes multiple part numbers: DS21602, DS21600.
Please refer to the document for exact specifications by model.
