DS26401 - Octal T1/E1/J1 Framer

Product Overview

Dallas Semiconducotr

Part number	DS26401
Manufacturer	Dallas Semiconducotr
File Size	1.53 MB
Description	Octal T1/E1/J1 Framer
Datasheet	DS26401 Datasheet
Note	This datasheet PDF includes multiple part numbers: DS26401, DS2. Please refer to the document for exact specifications by model.

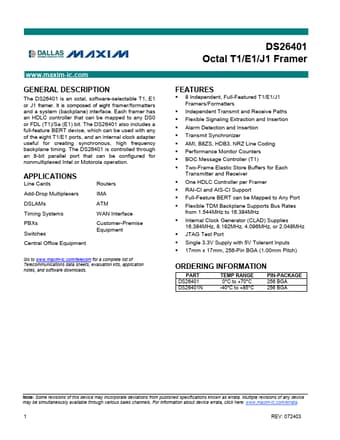

Additional preview pages of the DS26401 datasheet.

The DS26401 is an octal, software-selectable T1, E1 or J1 framer.

8 Independent, Full-Featured T1/E1/J1 Framers/Formatters Independent Transmit and Receive Paths Flexible Signaling Extraction and Insertion Alarm Detection and Insertion Transmit Synchronizer AMI, B8ZS, HDB3, NRZ Line Coding Performance Monitor Counters BOC Message Controller (T1) Two-Frame Elastic Store Buffers for Each Transmitter and Receiver One HDLC Controller per Framer RAI-CI and AIS-CI S.
