BR251L, BR2505L - (BR2505L - BR2510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

BR251L Description

www.DataSheet4U.com DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS BR2505L THRU BR2510L TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE R.

BR251L Features

* Plastic case with heatsink for Maximum Heat Dissipation
* Diffused Junction
* High current capability
* Surge overload ratings - 300 Amperes
* Low forward voltage drop
* High Reliability
* Designed for saving mounting space BR-25L METAL HEAT SINK MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BR251L, BR2505L. Please refer to the document for exact specifications by model.

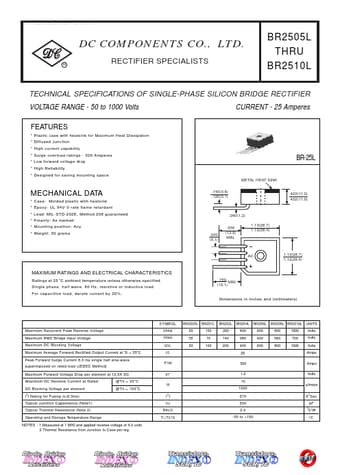

datasheet Preview Page 2

Datasheet Details

Part number
BR251L, BR2505L
Manufacturer
Dc Components
File Size
208.91 KB
Datasheet
BR2505L_DcComponents.pdf
Description
(BR2505L - BR2510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: BR251L, BR2505L.
Please refer to the document for exact specifications by model.
