BR2510M, BR2500M - (BR2500M - BR2510M) SILICON BRIDGE RECTIFIERS

BR2510M Description

BR2500M - BR2510M PRV : 50 - 1000 Volts Io : 25 Amperes .

BR2510M Features

* :
* High current capability High surge current capability High reliability Low reverse current Low forward voltage drop Pb / RoHS Free SILICON BRIDGE RECTIFIERS BR50 0.728(18.50) 0.688(17.40) 0.570(14.50) 0.530(13.40) 0.685(16.70) 1.130(28.70) 0.618(15.70) 1.120(

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BR2510M, BR2500M. Please refer to the document for exact specifications by model.

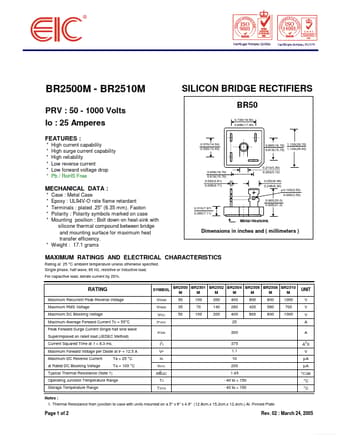

datasheet Preview Page 2

Datasheet Details

Part number
BR2510M, BR2500M
Manufacturer
EIC
File Size
65.67 KB
Datasheet
BR2500M_EIC.pdf
Description
(BR2500M - BR2510M) SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: BR2510M, BR2500M.
Please refer to the document for exact specifications by model.
