BR2510W, BR2500W SILICON BRIDGE RECTIFIERS

BR2510W Description

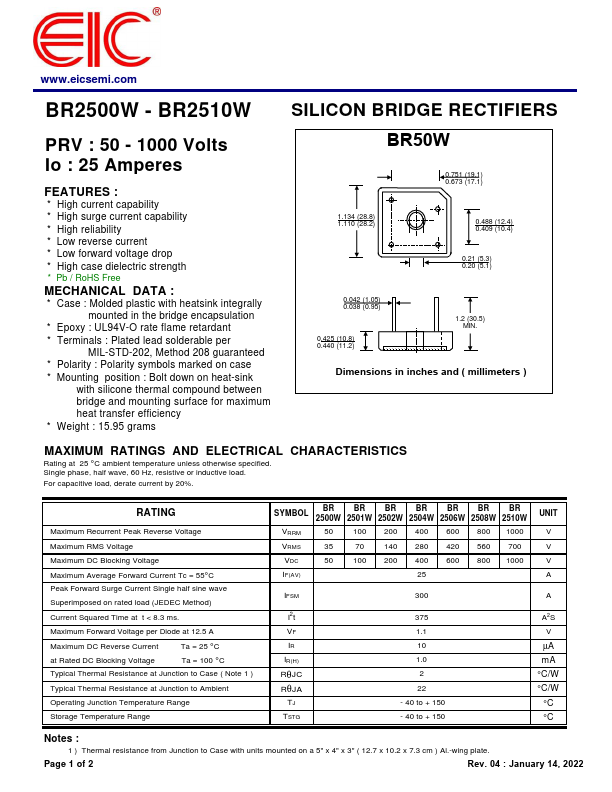

www.eicsemi.com BR2500W - BR2510W SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 25 Amperes .

BR2510W Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* High case dielectric strength
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge en

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BR2510W, BR2500W. Please refer to the document for exact specifications by model.

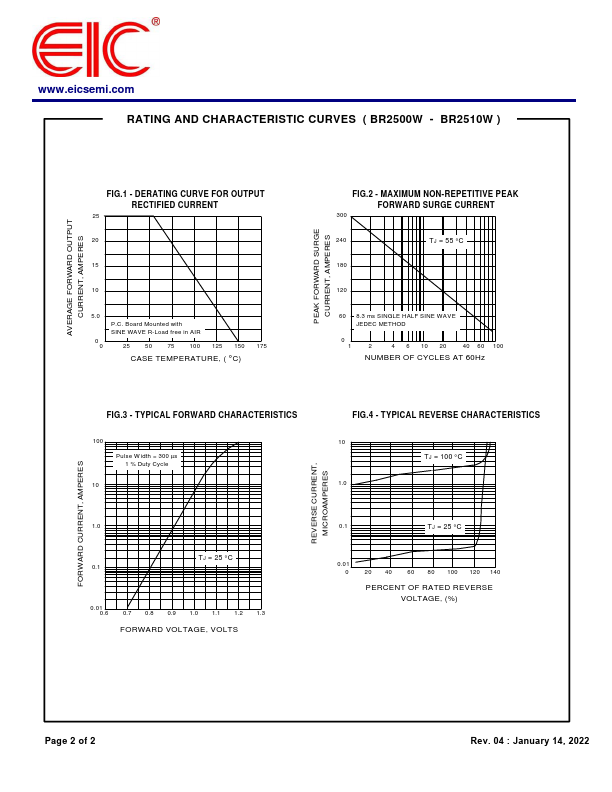

datasheet Preview Page 2

Datasheet Details

Part number
BR2510W, BR2500W
Manufacturer
EIC
File Size
147.07 KB
Datasheet
BR2500W-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: BR2510W, BR2500W.
Please refer to the document for exact specifications by model.
