BR251 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

BR251 Description

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION BR2505 THRU BR2510 SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 25 Amp.

BR251 Features

* Superior thermal desing 300 amperes surge rating // 1/4 universal faston terminal Hole thru for # 8 screw MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O BR-25 MAXIMUM RATINGS AND

📥 Download Datasheet

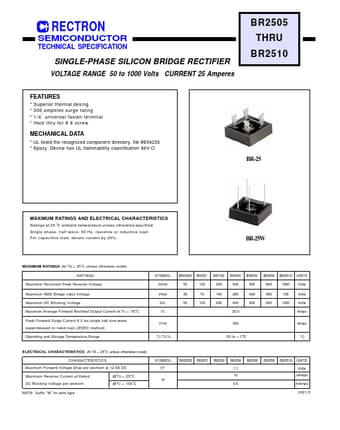

Preview of BR251 PDF
datasheet Preview Page 2
