DMBTA05 Datasheet - Dc Components

DMBTA05 NPN Transistor

Designed for general purpose amplifier applications. SOT-23 Pinning 1 = Base 2 = Emitter 3 = Collector 1 3 .020(0.50) .012(0.30) .063(1.60) .055(1.40) .108(0.65) .089(0.25) 2 Absolute Maximum Ratings(TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage.

DMBTA05_DcComponents.pdf

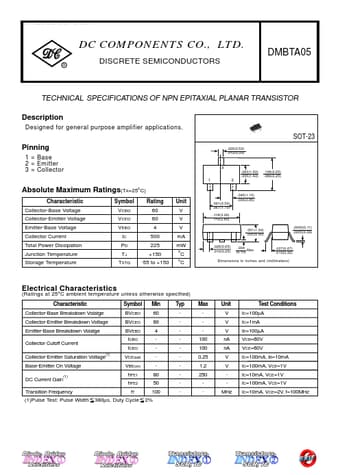

Preview of DMBTA05 PDF

Datasheet Details

Part number:

DMBTA05

Manufacturer:

Dc Components

File Size:

252.81 KB

Description:

Npn transistor.
