DMBTA13 - NPN Transistor

Description

Designed for applications requiring high current gain.

📥 Download Datasheet

Datasheet preview – DMBTA13

Datasheet Details

Part number DMBTA13
Manufacturer Dc Components
File Size 251.56 KB
Description NPN Transistor
Datasheet download datasheet DMBTA13 Datasheet
Additional preview pages of the DMBTA13 datasheet.

📁 Similar Datasheet

  • DMBT9022 - NPN Transistor (Diodes Incorporated)
  • DMBT9922 - PNP Transistor (Diodes Incorporated)
  • DMB - ELECTRIC DOUBLE LAYER CAPACITORS (Rubycon)
  • DMB01 - Timers Multifunction (Carlo Gavazzi)
  • DMB01CM24 - Timers Multifunction (Carlo Gavazzi)
  • DMB2227A - COMPLEMENTARY NPN / PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR (Diodes)
  • DMB51CM24 - (DMB51 Series) Timers Multifunction (Carlo Gavazzi)
  • DMB53D0UDW - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR (Diodes)
  • DMB53D0UV - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR (Diodes)
  • DMB54D0UDW - N-Channel MOSFET (Diodes)
Other Datasheets by Dc Components

Full PDF Text Transcription

Click to expand full text

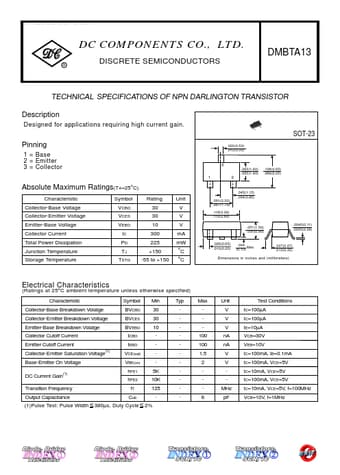

www.DataSheet4U.com DC COMPONENTS CO., LTD. R DMBTA13 DISCRETE SEMICONDUCTORS TECHNICAL SPECIFICATIONS OF NPN DARLINGTON TRANSISTOR Description Designed for applications requiring high current gain. SOT-23 Pinning 1 = Base 2 = Emitter 3 = Collector 1 3 .020(0.50) .012(0.30) .063(1.60) .055(1.40) .108(0.65) .089(0.25) 2 Absolute Maximum Ratings(TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCES VEBO IC PD TJ TSTG Rating 30 30 10 300 225 +150 -55 to +150 Unit V V V mA mW o o .091(2.30) .067(1.70) .118(3.00) .110(2.80) .045(1.15) .034(0.85) .051(1.30) .035(0.90) .026(0.65) .010(0.25) .0043(0.11) .0035(0.09) C .004 Max (0.10) .027(0.
