MMB156, MMB1505 - (MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Name: MMB156
SKU: MMB156-595796

Dc Components

The MMB156 by Dc Components is a (MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

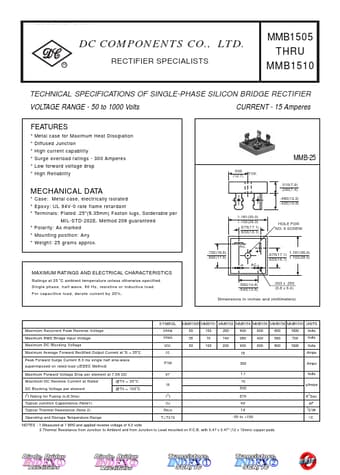

MMB156 (MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER by Dc Components - Datasheet Preview — Official preview page of the **MMB156** (MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER datasheet (Dc Components).

Datasheet Details

Part number	MMB156, MMB1505
Manufacturer	Dc Components
File Size	308.27 KB
Description	(MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MMB1505_DcComponents.pdf
Note	This datasheet PDF includes multiple part numbers: MMB156, MMB1505. Please refer to the document for exact specifications by model.
Additional preview pages of the MMB156 datasheet.

MMB156 Product details

Features

Metal case for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) MMB-25.
