MMB156W Features
* Metal case for Maximum Heat Dissipation
* Diffused Junction
* High current capability
* Surge overload ratings - 300 Amperes
* Low forward voltage drop
* High Reliability .500 (12.7) TYP. .310(7.9) .290(7.4) .591 MAX. (15.0) MMB-25W MECHANICAL DATA
* Case: Metal case,
Datasheet Details
MMB156W, MMB1505W
Dc Components
290.25 KB

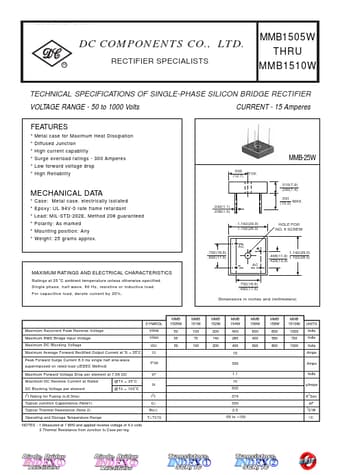

(mmb1505w - mmb1510w) technical specifications of single-phase silicon bridge rectifier.
This datasheet PDF includes multiple part numbers: MMB156W, MMB1505W.
Please refer to the document for exact specifications by model.
