SLG46824

GreenPAK Programmable Mixed Signal Matrix

SLG46824 Features

* Two Low Power General Purpose Rail-to-Rail Analog Comparators (ACMPxL)

* One Voltage Reference

* One Vref Output

* Eleven Combination Function Macrocells

* Three Selectable DFF/Latch or 2-bit LUTs

* One Selectable Programmable Pattern Generator or 2-bit LUT

* Six Select

SLG46824 General Description

The SLG46824 provides a small, low power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple time Non-Volatile Memory (NVM) to configure the interconnect logic, the IOs and the macrocells of the SLG46824. Dual power supply allows to fle.

SLG46824 Datasheet (1.92 MB)

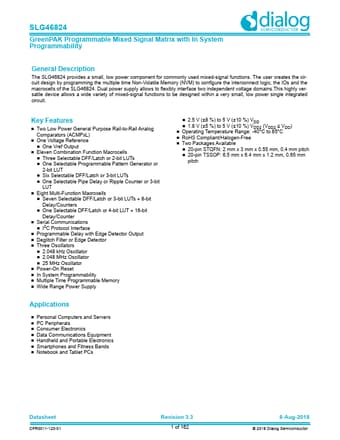

Preview of SLG46824 PDF

Datasheet Details

Part number:

SLG46824

Manufacturer:

Dialog Semiconductor

File Size:

1.92 MB

Description:

Greenpak programmable mixed signal matrix.
