SLG46811 - GreenPAK Programmable Mixed-Signal Matrix

Renesas

📥 Download Datasheet

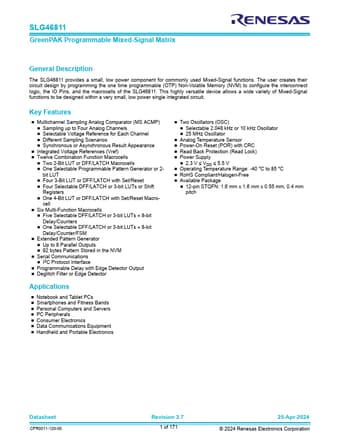

SLG46811 Datasheet Preview — Preview of SLG46811 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SLG46811
Manufacturer	Renesas ↗
File Size	2.40 MB
Description	GreenPAK Programmable Mixed-Signal Matrix
Datasheet	SLG46811-Renesas.pdf

SLG46811 Product details

Description

The SLG46811 provides a small, low power component for commonly used Mixed-Signal functions.

Features

Multichannel Sampling Analog Comparator (MS ACMP).
Sampling up to Four Analog Channels.
Selectable Voltage Reference for Each Channel.
Different Sampling Scenarios.
Synchronous or Asynchronous Result Appearance.
Integrated Voltage References (Vref).
Twelve Combination Function Macrocells.
Two 2-Bit LUT or DFF/LATCH Macrocells.
One Selectable Programmable Pattern Generator or 2- bit LUT.
Four 3-Bit LUT or DFF/LATCH with Set/Reset.
Four Selec.
