1N5184, 1N5181 HIGH VOLTAGE RECTIFIERS

1N5184 Description

High-reliability discrete products and engineering services since 1977 1N3643-1N3647, 1N4254-1N4257, 1N5181-1N5184 HIGH VOLTAGE RECTIFIERS .

1N5184 Features

* Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
* Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix. MAXIMUM RATINGS Parameter Value Operating and Storage Temperature: Thermal resistanc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5184, 1N5181. Please refer to the document for exact specifications by model.

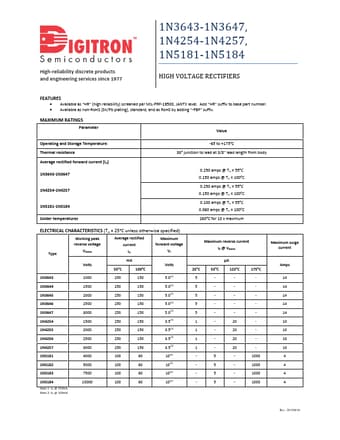

datasheet Preview Page 2

Datasheet Details

Part number
1N5184, 1N5181
Manufacturer
DigitrON Semiconductor ↗s
File Size
325.62 KB
Datasheet
1N5181-DigitronSemiconductors.pdf
Description
HIGH VOLTAGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N5184, 1N5181.
Please refer to the document for exact specifications by model.
