DTC1117 - 1A Bipolar Linear Regulator

Product Overview

Din-Tek

Part number	DTC1117
Manufacturer	Din-Tek
File Size	1.79 MB
Description	1A Bipolar Linear Regulator
Datasheet	DTC1117 Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC1117, DTC1117-Din. Please refer to the document for exact specifications by model.

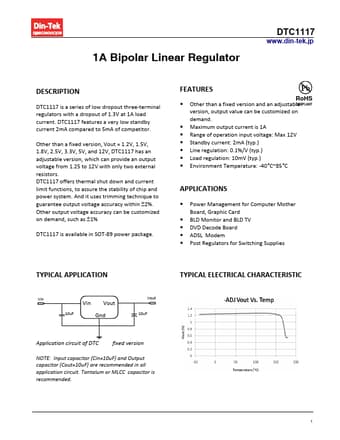

Additional preview pages of the DTC1117 datasheet.

DTC1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current.

a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, DTC1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. DTC1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customize.
