DTC2059 - P-Channel MOSFET

DTC2059 Description

P-Channel 20 V (D-S) MOSFET DTC2059 www.din-tek.jp PRODUCT SUMMARY VDS (V) - 20 RDS(on) (Ω) 0.075 at VGS = - 4.5 V 0.081 at VGS = - 3.6 V 0.090 at.

DTC2059 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

DTC2059 Applications

* Portable Devices - Load Switch - Charger Switch - Battery Switch - DC/DC Converter GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 15

📥 Download Datasheet

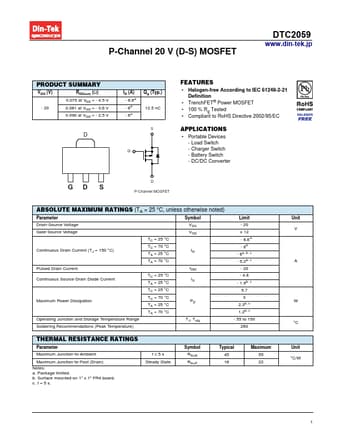

Preview of DTC2059 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC2059
Manufacturer
Din-Tek
File Size
279.75 KB
Datasheet
DTC2059-DinTek.pdf
Description
P-Channel MOSFET
