DTC2058 - N-Channel MOSFET

DTC2058 Description

N-Channel 20-V (D-S) MOSFET DTC2058 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.033 at VGS = 4.5 V 20 0.045 at VGS = 2.5 V ID (A)a 6.8 .

DTC2058 Features

* Halogen-free

DTC2058 Applications

* Load Switches for Portable Devices D RoHS COMPLIANT GD S G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C TA

📥 Download Datasheet

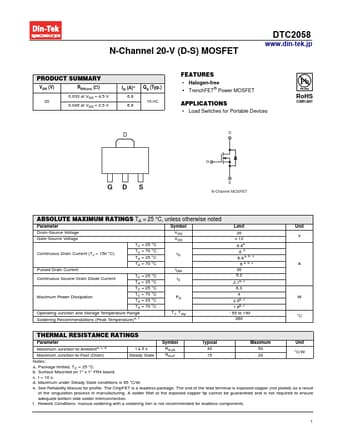

Preview of DTC2058 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC2058
Manufacturer
Din-Tek
File Size
307.58 KB
Datasheet
DTC2058-DinTek.pdf
Description
N-Channel MOSFET
