DTC013ZUB

NPN 100mA 50V Digital Transistors

Rohm

DTC013ZUB Features

* 1) Built-In Biasing Resistors, R1 = 1kΩ, 　R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　

DTC013ZUB Datasheet (1.02 MB)

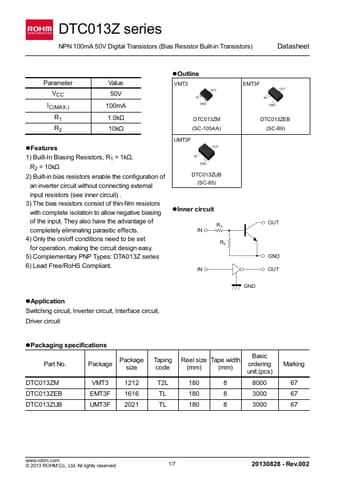

DTC013ZUB Datasheet Preview — Preview of DTC013ZUB PDF

Datasheet Details

Part number:

DTC013ZUB

Manufacturer:

ROHM ↗

File Size:

1.02 MB

Description:

Npn 100ma 50v digital transistors.
DTC013Z series NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 1.0kΩ .
